Transformer

Transformer

Widely available product line-up to forward external transformer for strobe from the flyback transformer

Strengthen the lineup also added stroke for ultra-small transformer mounted on new smartphone.



Feature

  1. The widely available small transformers to large current from the low current.
  2. Fast charging specification that incorporates the winding technology of its own. (Can be adjusted according to your request characteristics)
  3. High reliability using the manufacturing elements.

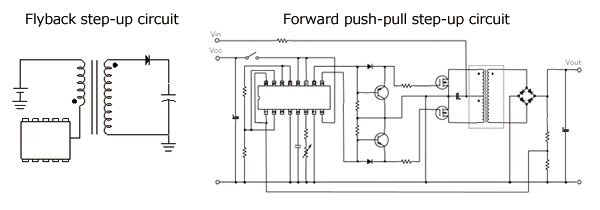

Example



LINE UP

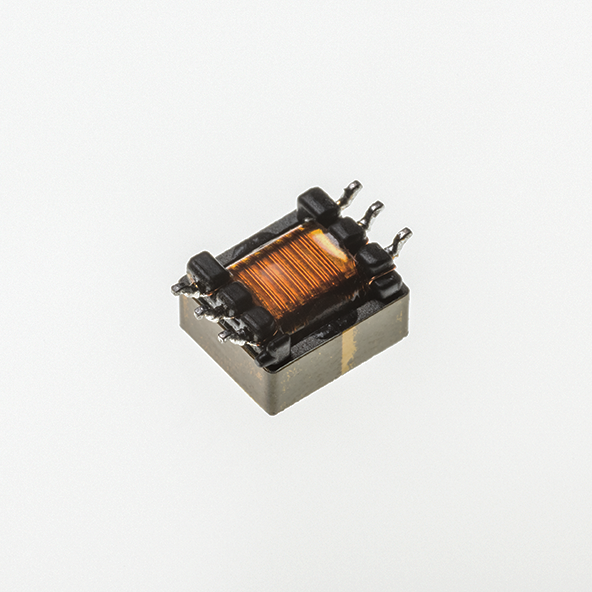

TTRN-3825H
Feature SMD
Reflow possible
Height 2.5mm MAX

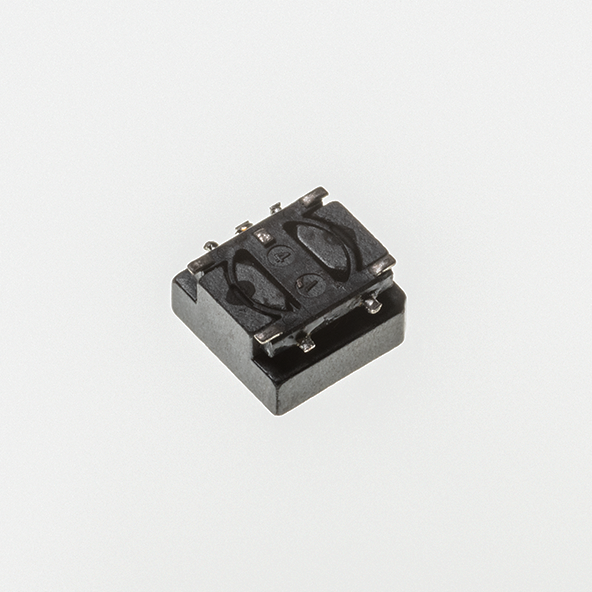

TTRN-0520H
Feature SMD
Reflow possible
Height 2.0mm MAX

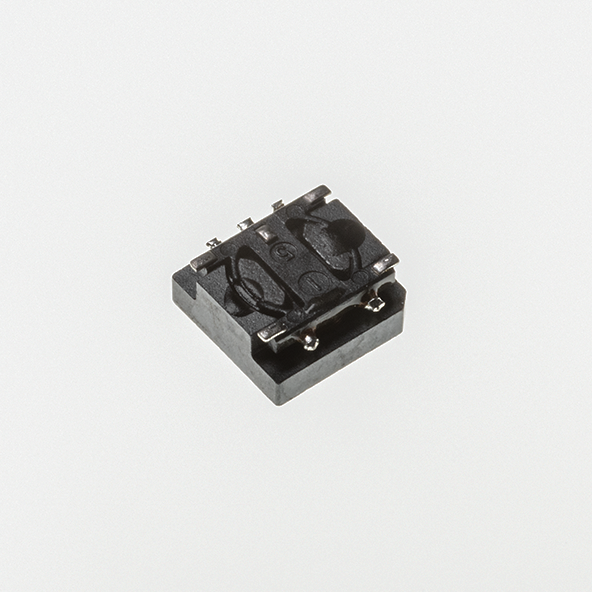

TTRN-0525PH
Feature SMD
Reflow possible
Height 2.5mm MAX

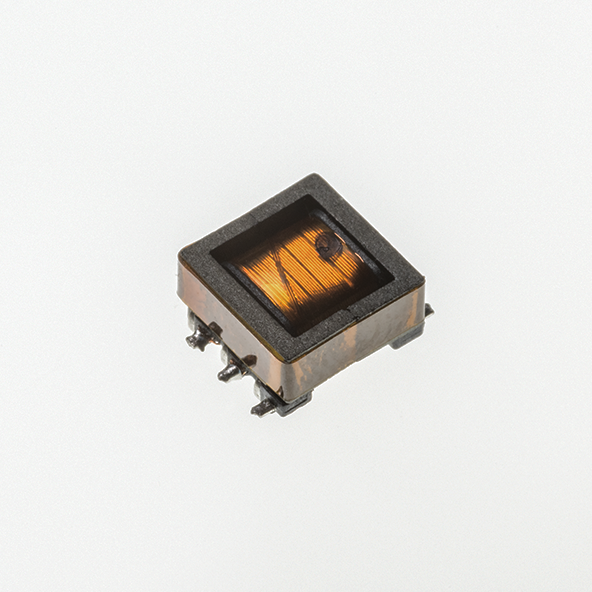

TTRN-0530H
Feature SMD
Reflow possible
Height 3.0mm MAX

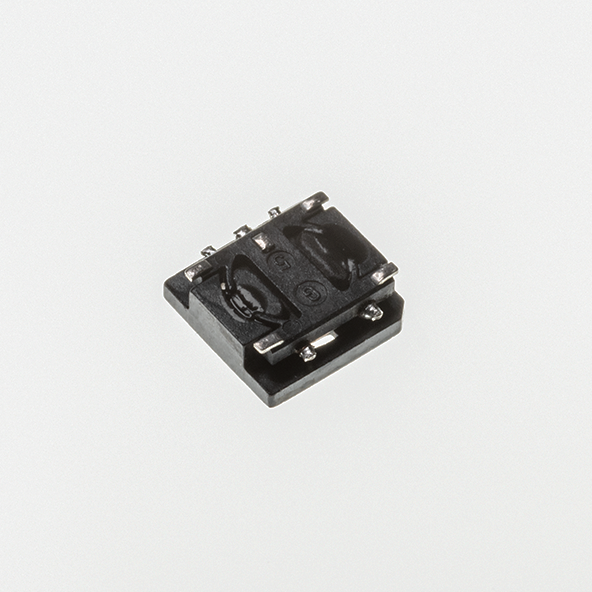

TTRN-038S
Feature SMD
Reflow possible
Height 4.0mm MAX

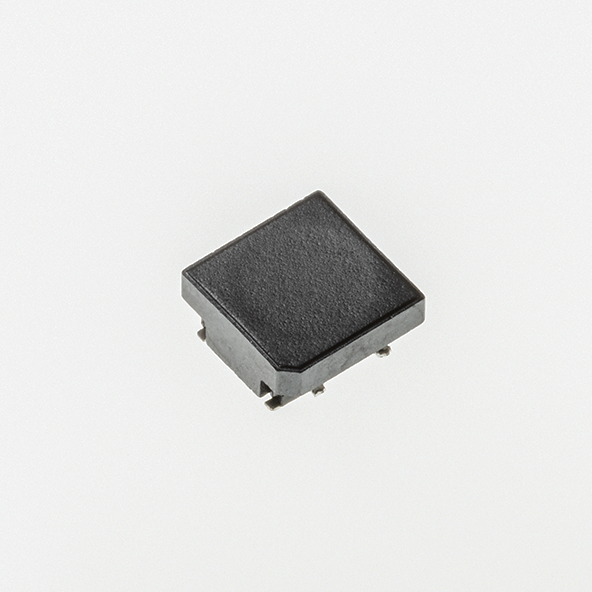

TTRN-060S
Feature SMD
Reflow possible
Height 4.8mm MAX

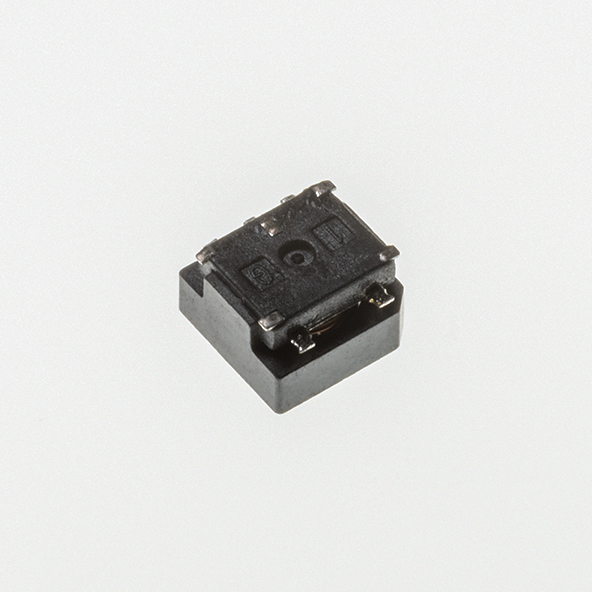

TTRN-087S
Feature SMD
Reflow possible
Height 7.9mm MAX
TTRN-160B
Feature SMD
Reflow impossible
Height 15.0mm MAX
