Power Inductor

Magnetic shield automatic mountable compact, high performance reflow soldering Various power sources for smooth coil, DC/DC converter for voltage conversion for power inductor, and developed as for noise suppression coil, surface-mount chip high power inductors SHP series, has realized a low-cost and low-profile.

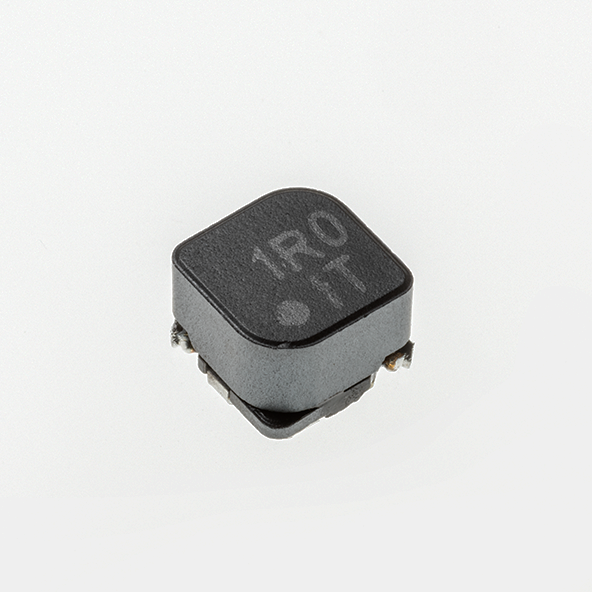

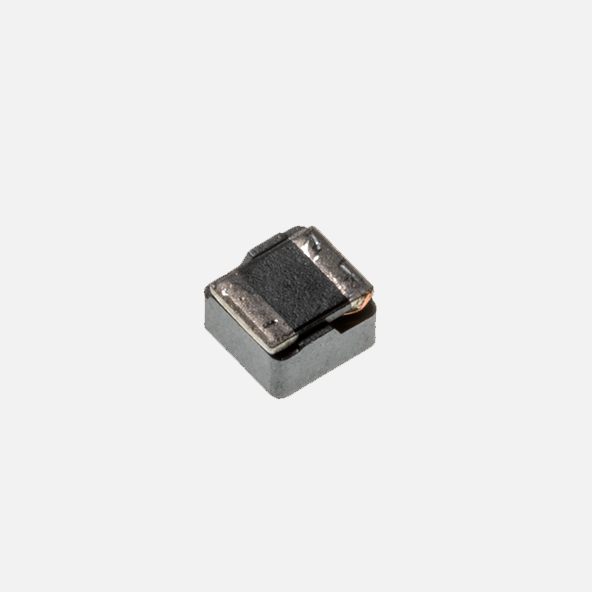

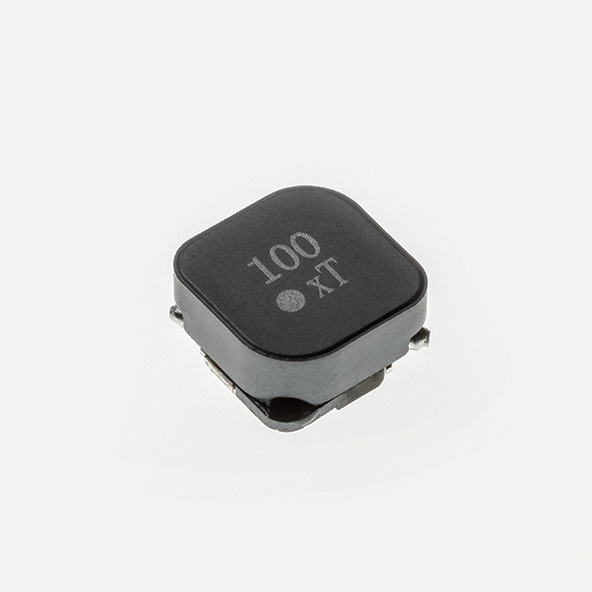

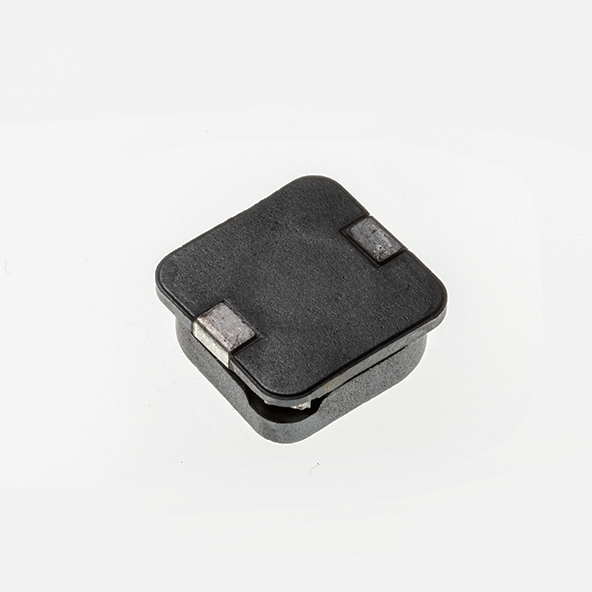

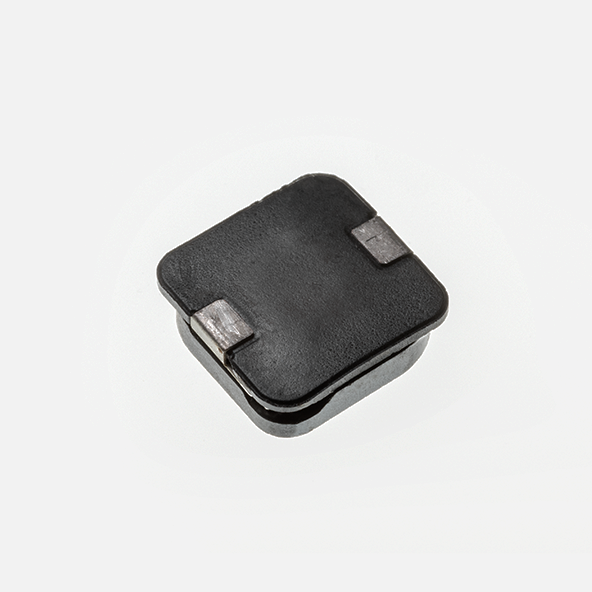

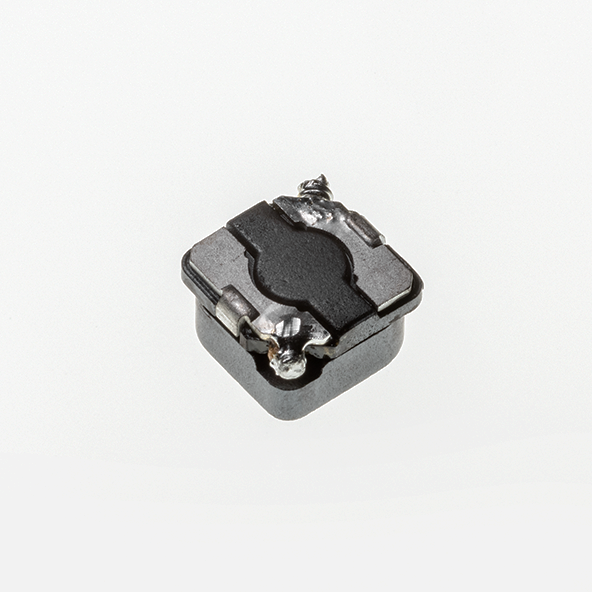

SHP Series

Feature

Low leakage flux to the outside by complete closed magnetic circuit structure

Correspond to large saturation current by high Bm Ni-Zn ferrite core

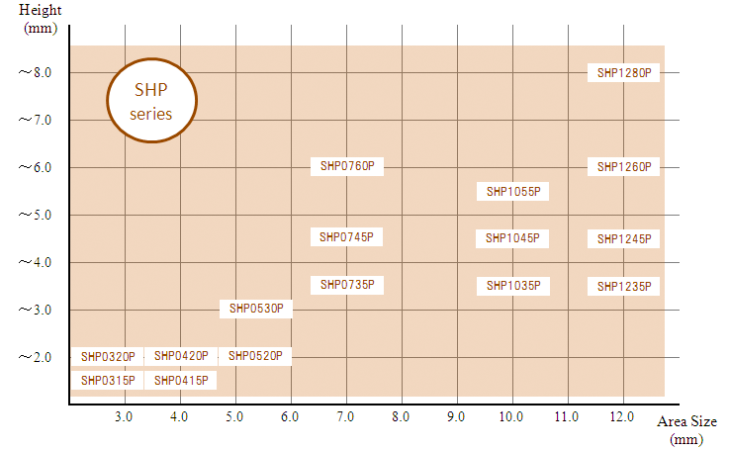

LINE UP

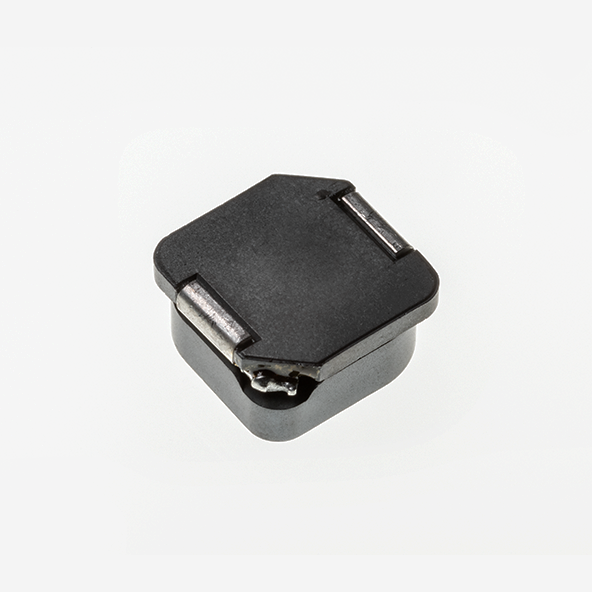

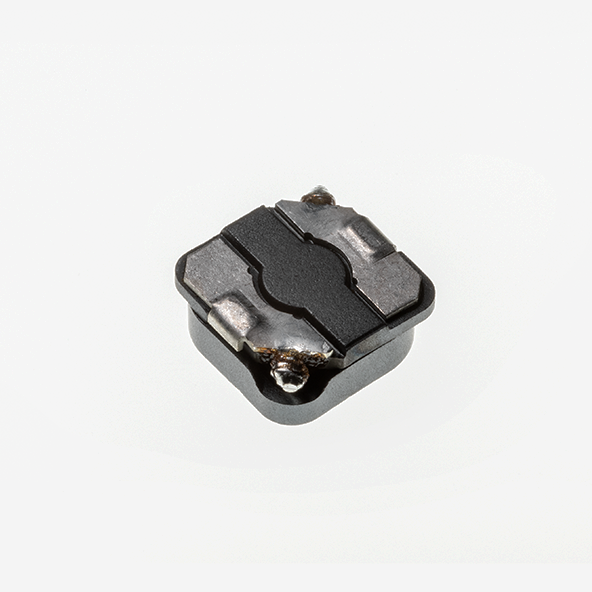

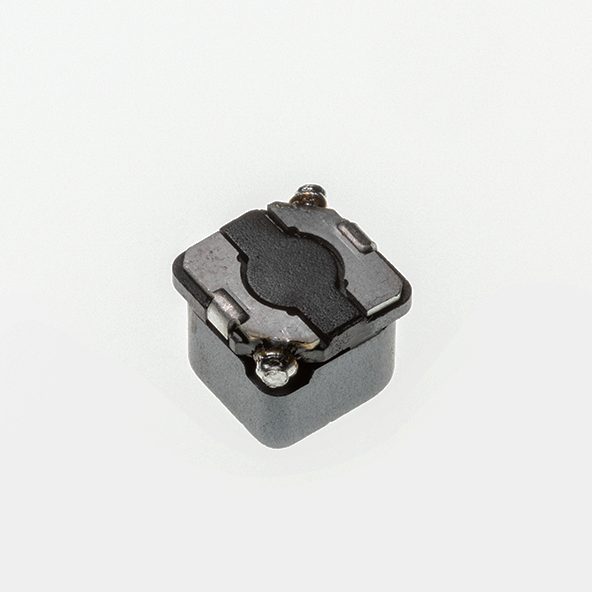

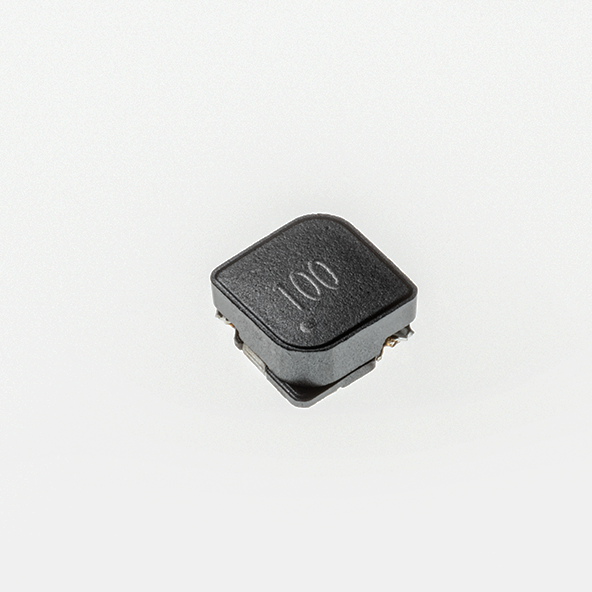

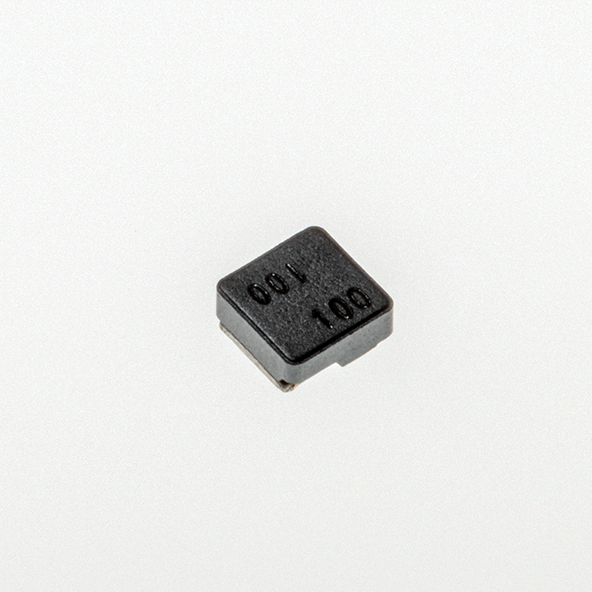

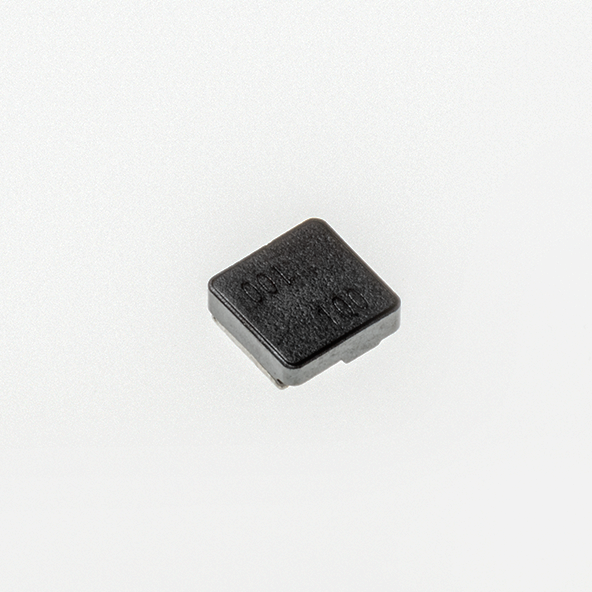

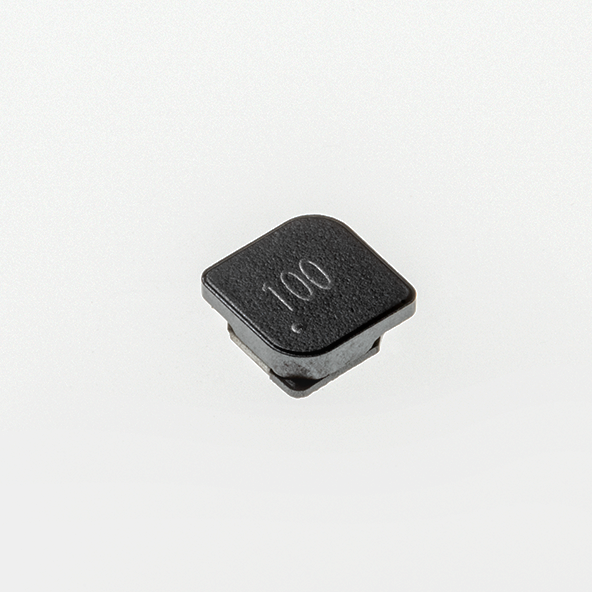

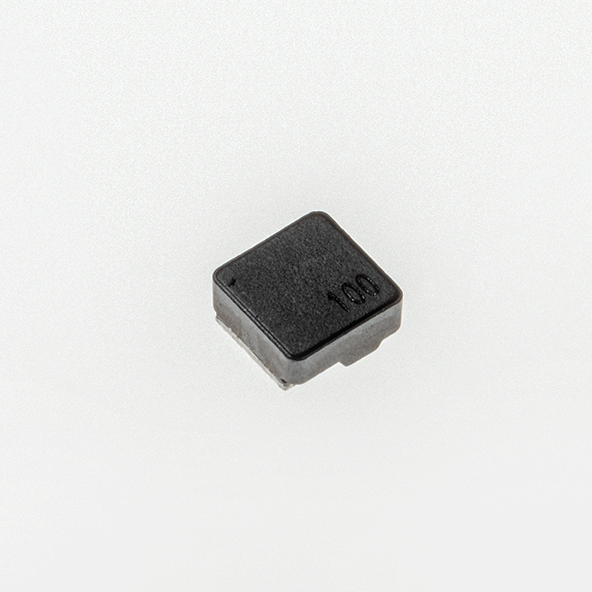

SHP0315P
Feature Small size, Thin 3.0mm×3.0mm
Height 1.5mm MAX
Inductance／current 1.0μH   1.71A   ～   33.0μH   0.31A
Download the spec sheet
SHP0320P
Feature Small size, Thin 3.0mm×3.0mm
Height 2mm MAX
Inductance／current 1.0μH   2.43A   ～   47.0μH   0.33A
Download the spec sheet

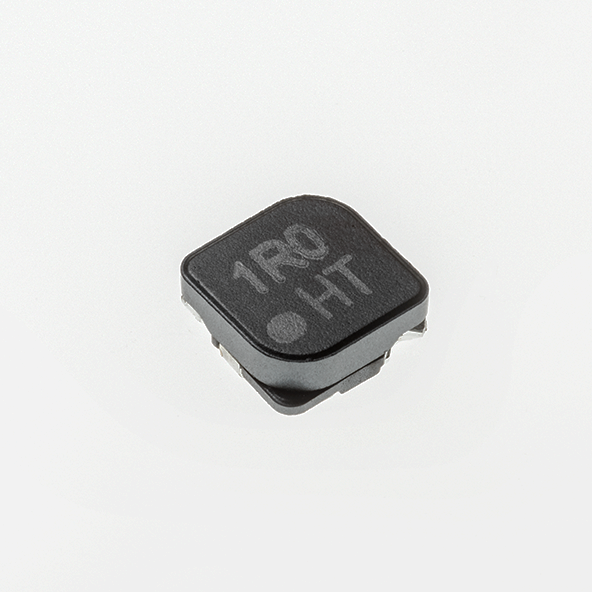

SHP0415P
Feature Small size, Thin 4.0mm×4.0mm
Height 1.5mm MAX
Inductance／current 1.0μH   2.77A   ～   47.0μH   0.45A
Download the spec sheet
SHP0420P
Feature Small size, Thin ４.0mm×４.0mm
Height 2mm MAX
Inductance／current 1.0μH   2.93A   ～   47.0μH   0.54A
Download the spec sheet

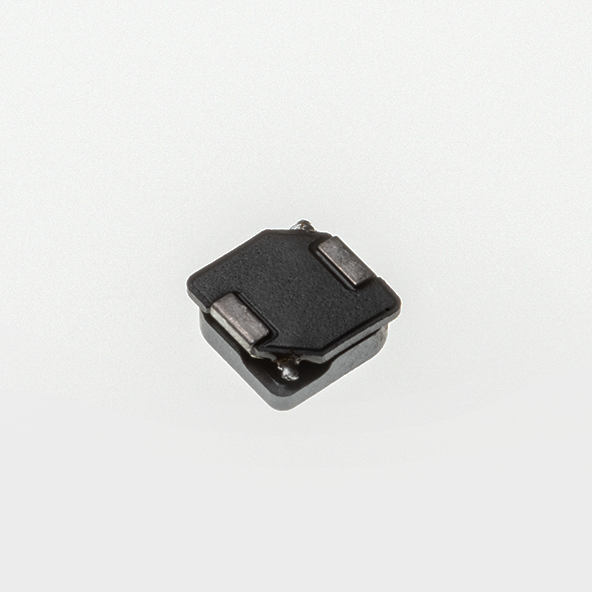

SHP0520P
Feature Small size, Thin 5.0mm×5.0mm
Height 2mm MAX
Inductance／current 3.3μH   1.65A   ～   470.0μH   0.14A

*The shape varies depending on the spec. Please refer to the spec sheet for details.

Download the spec sheet
SHP0530P
Feature Small size, Thin 5.0mm×5.0mm
Height 3mm MAX
Inductance／current 1.0μH   2.86A   ～   220.0μH   0.20A
Download the spec sheet

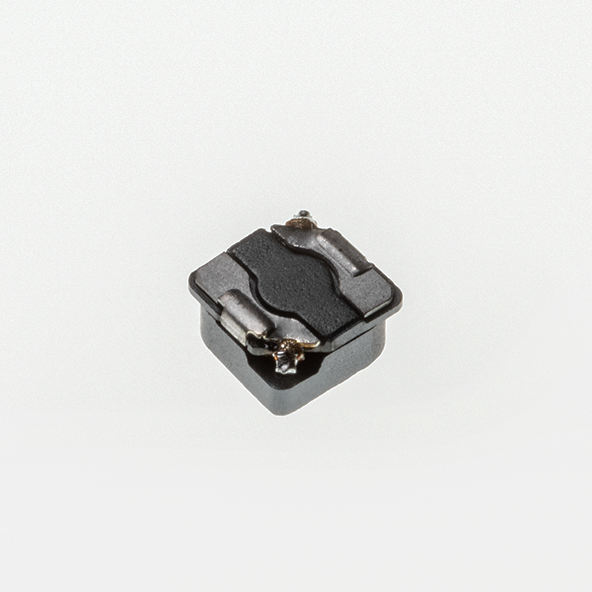

SHP0735P
Feature Small size, Thin 7.5mm×7.5mm
Height 3.5mm MAX
Inductance／current 3.3μH   4.7A   ～   470.0μH   0.3A

*The shape varies depending on the spec. Please refer to the spec sheet for details.

Download the spec sheet
SHP0745P
Feature Small size, Thin 7.5mm×7.5mm
Height 4.5mm MAX
Inductance／current 3.3μH   4.8A   ～   470.0μH   0.41A
Download the spec sheet
SHP0760P
Feature Small size, Thin 7.5mm×7.5mm
Height 6.0mm MAX
Inductance／current 3.3μH   4.86A   ～   470.0μH   0.36A
Download the spec sheet

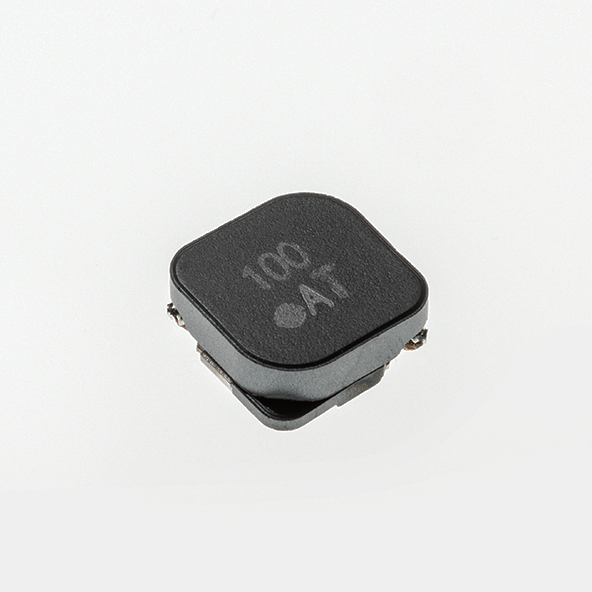

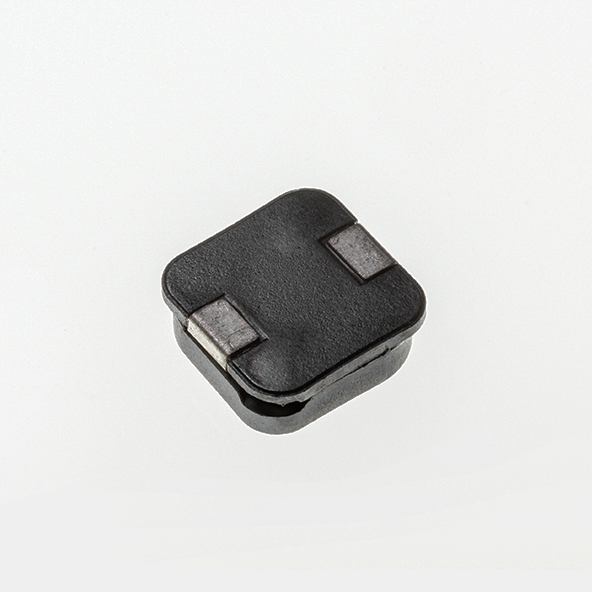

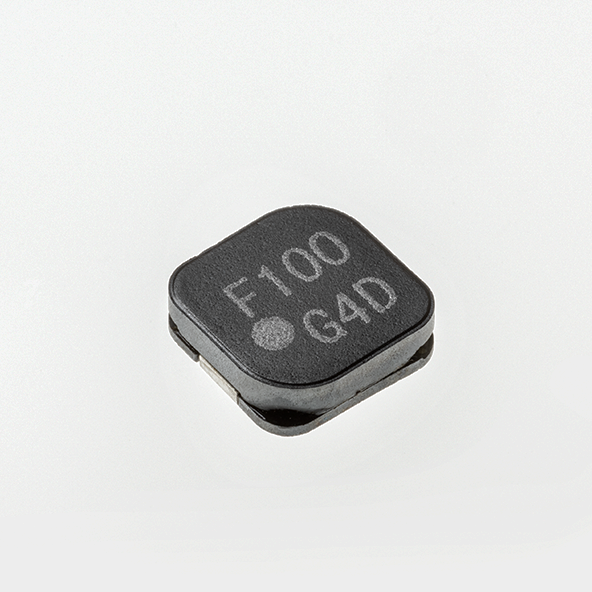

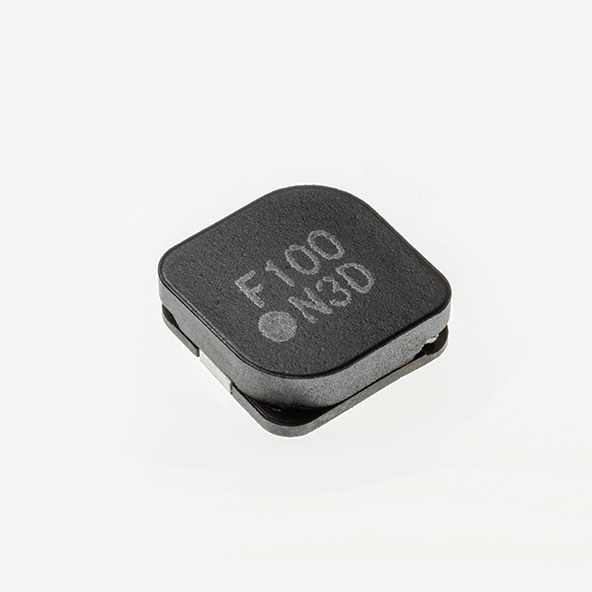

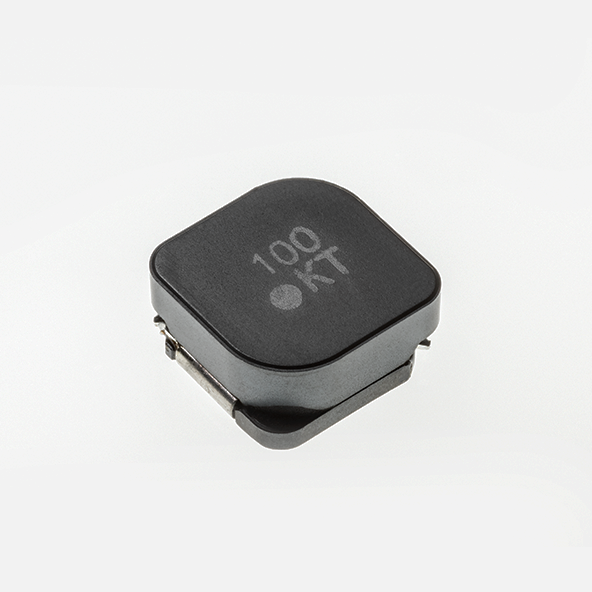

SHP1035P
Feature Small size, Thin 10.1mm×10.1mm
Height 3.5mm MAX
Inductance／current 3.3μH   5.7A   ～   470.0μH   0.2A
Download the spec sheet
SHP1045P
Feature Small size, Thin 10.1mm×10.1mm
Height 4.5mm MAX
Inductance／current 3.3μH   6.1A   ～   470.0μH   0.5A
Download the spec sheet
SHP1055P
Feature Small size, Thin 10.1mm×10.1mm
Height 5.5mm MAX
Inductance／current 3.3μH   7.2A   ～   470.0μH   0.6A
Download the spec sheet

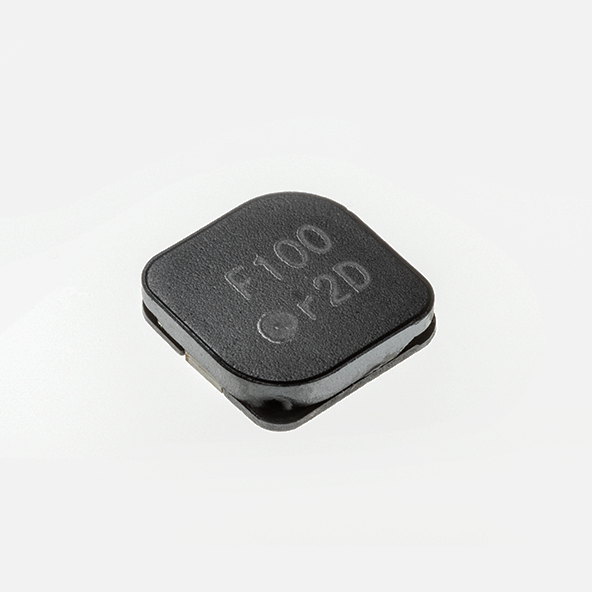

SHP1235P
Feature Small size, Thin 12.5mm×12.5mm
Height 3.5mm MAX
Inductance／current 3.3μH   6.0A   ～   470.0μH   0.6A
Download the spec sheet
SHP1245P
Feature Small size, Thin 12.5mm×12.5mm
Height 4.5mm MAX
Inductance／current 3.3μH   6.7A   ～   470.0μH   0.7A
Download the spec sheet
SHP1260P
Feature Small size, Thin 12.5mm×12.5mm
Height 6.0mm MAX
Inductance／current 3.3μH   9.6A   ～   10,000.0μH   0.15A
Download the spec sheet
SHP1280P
Feature Small size, Thin 12.5mm×12.5mm
Height 8.0mm MAX
Inductance／current 3.3μH   10.0A   ～   10,000.0μH   0.18A
Download the spec sheet

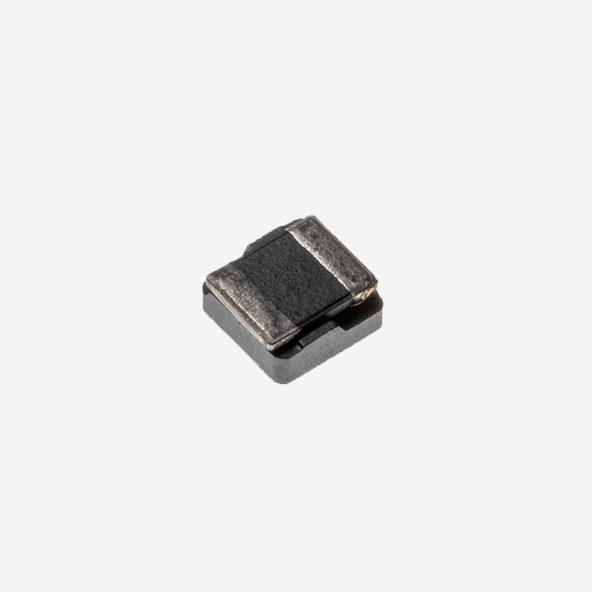

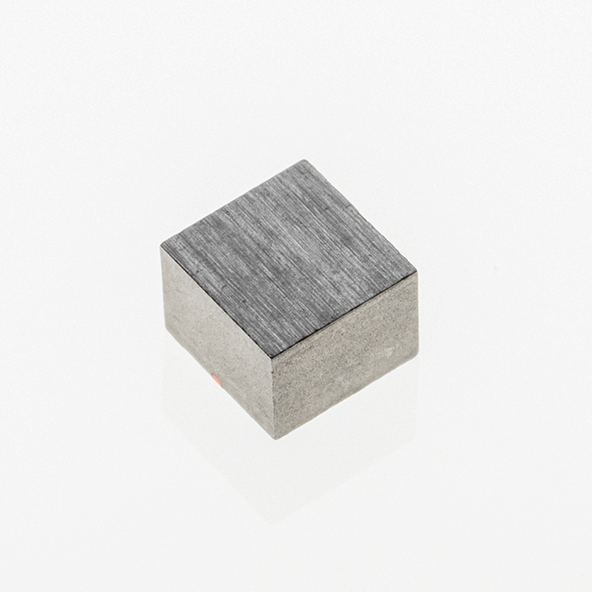

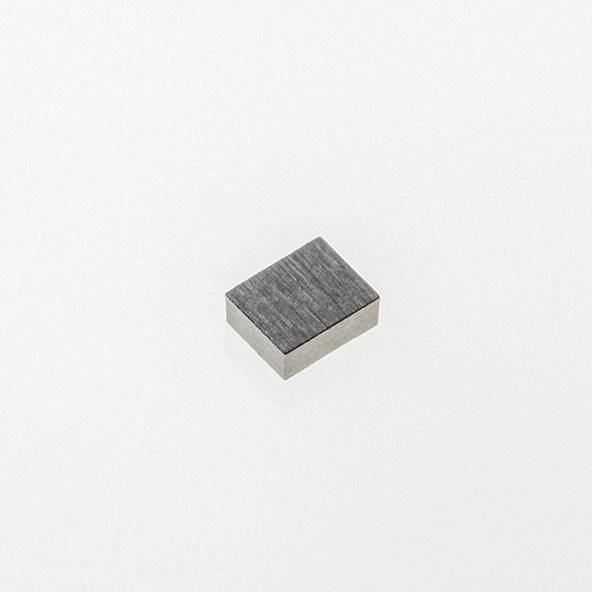

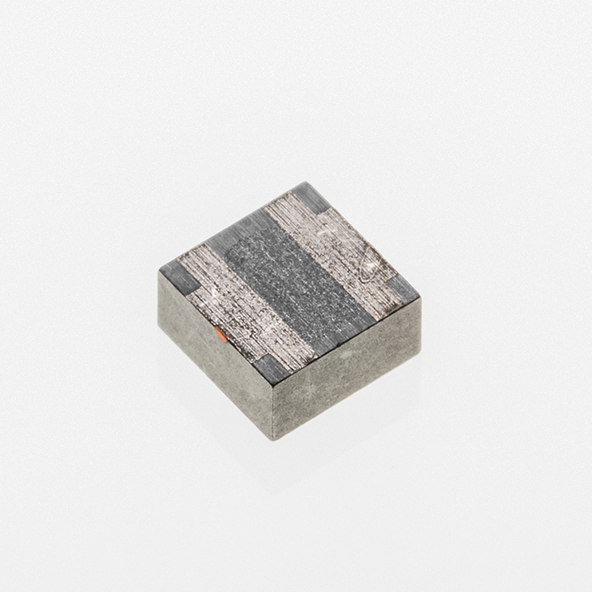

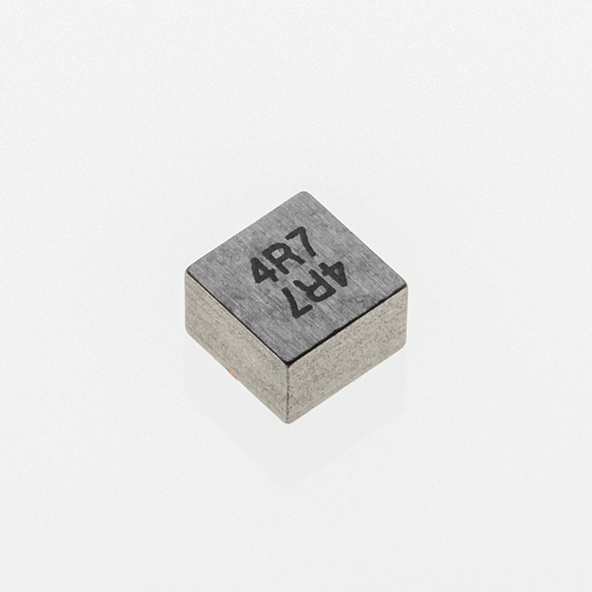

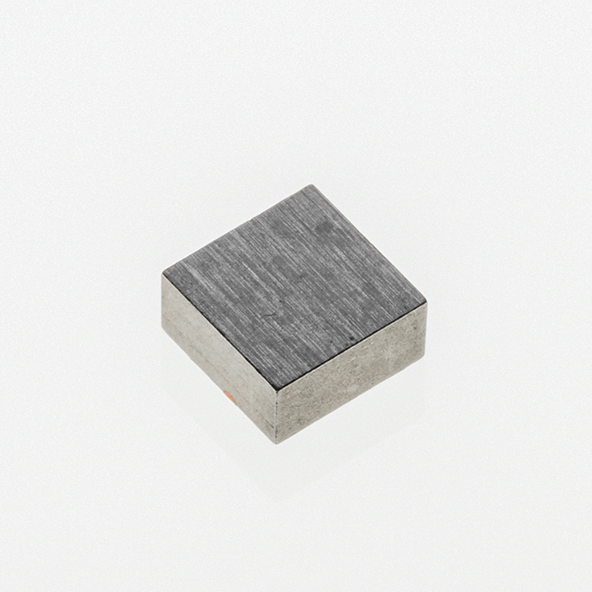

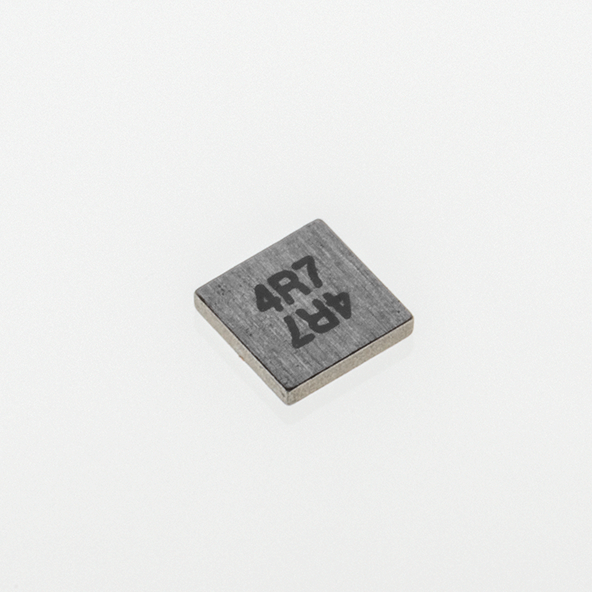

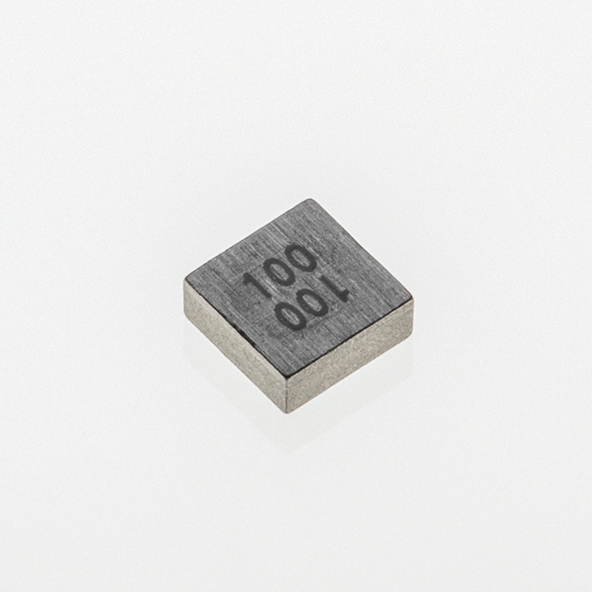

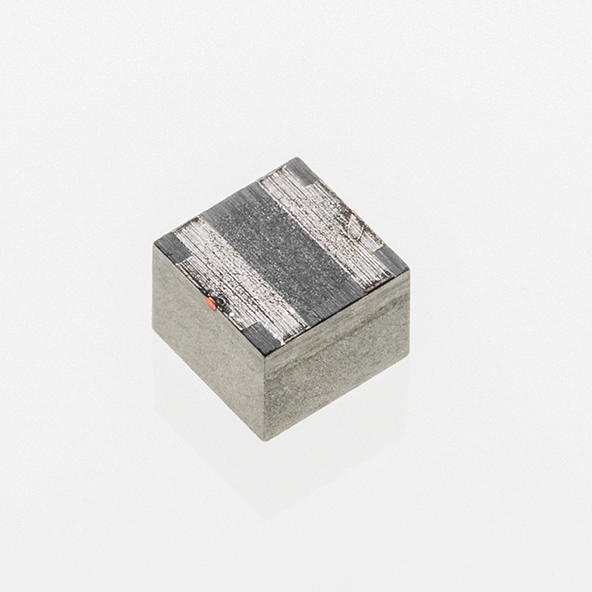

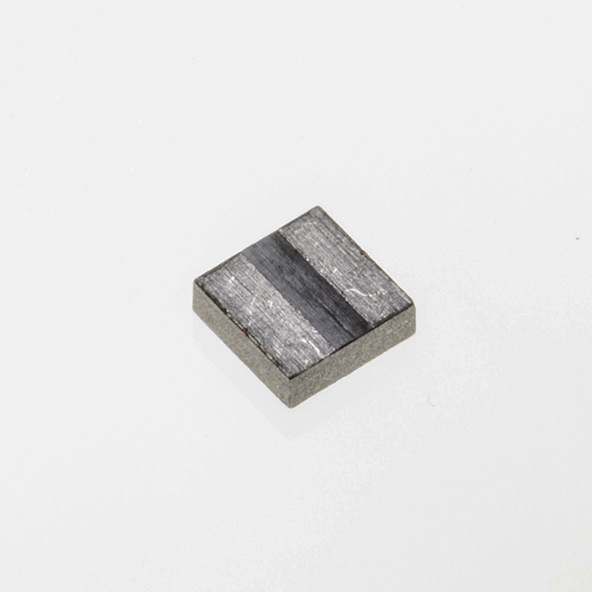

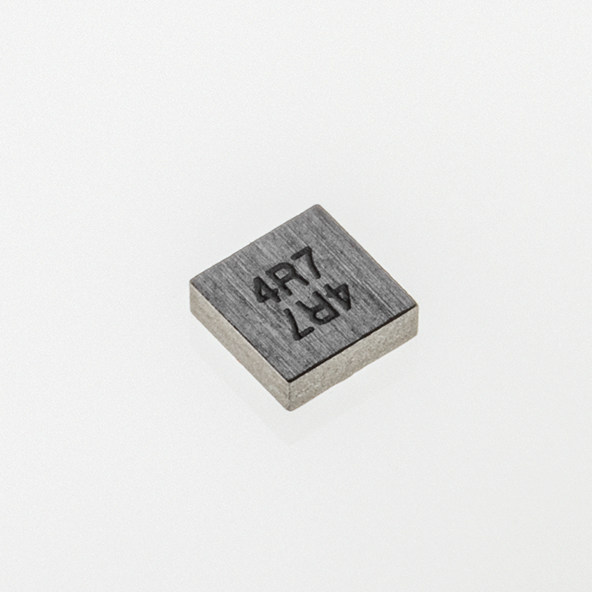

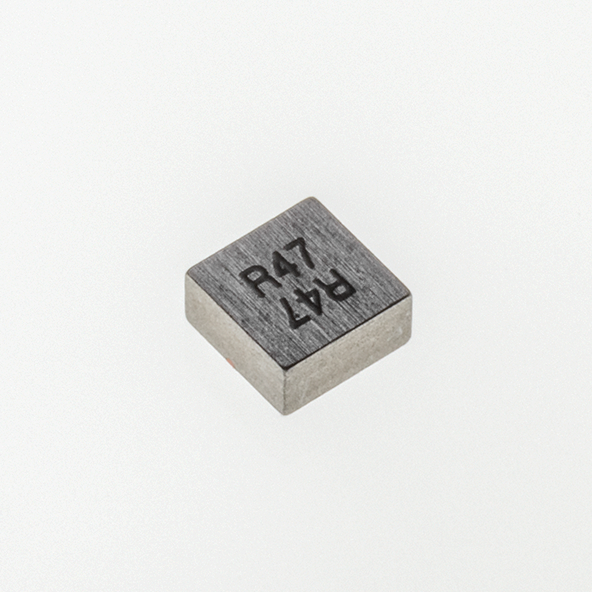

MCP Series

Feature

Large current, low DC-resistance and high efficiency by magnetic metal powder

Low acoustic noise and low leakage flux noise by shielded construction

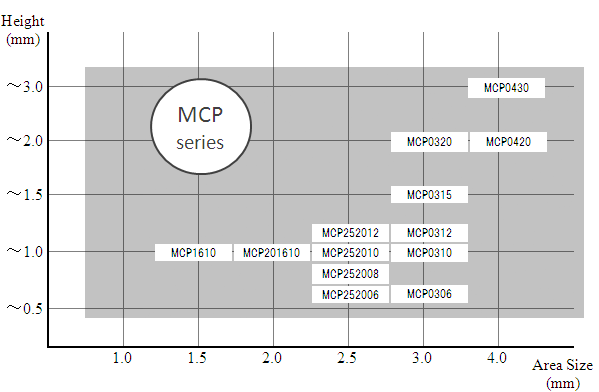

LINE UP

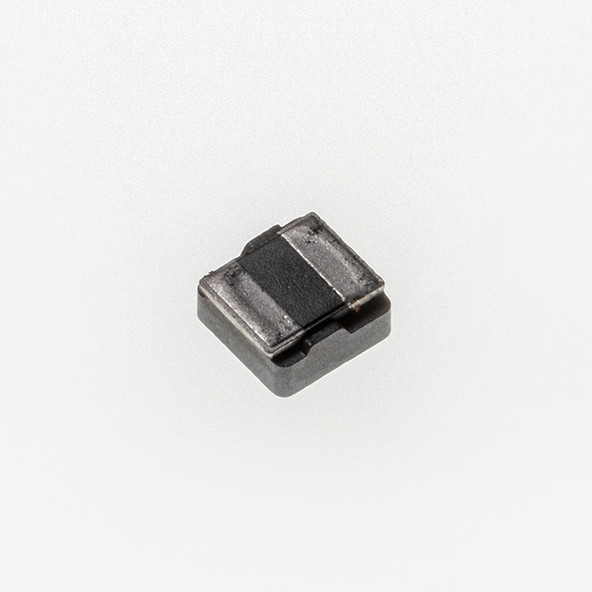

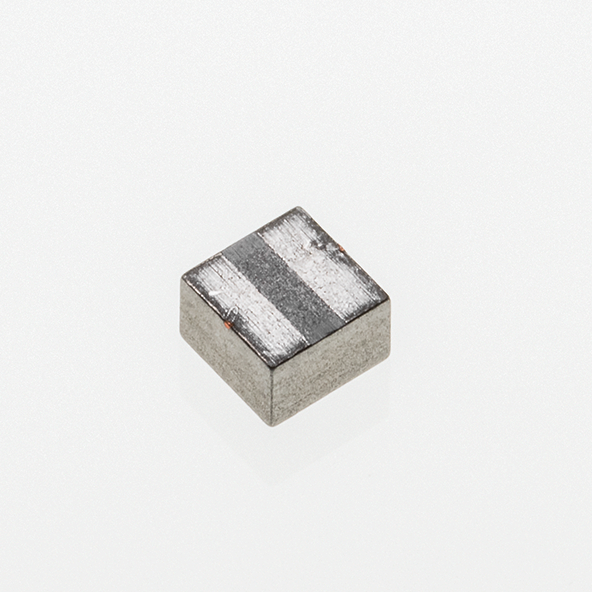

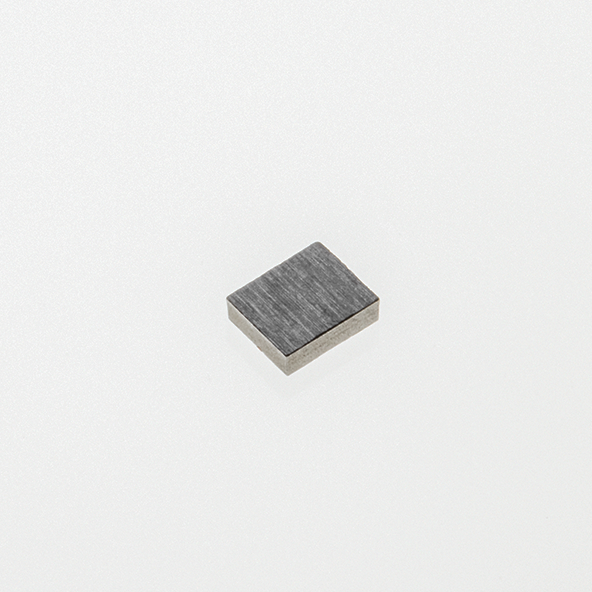

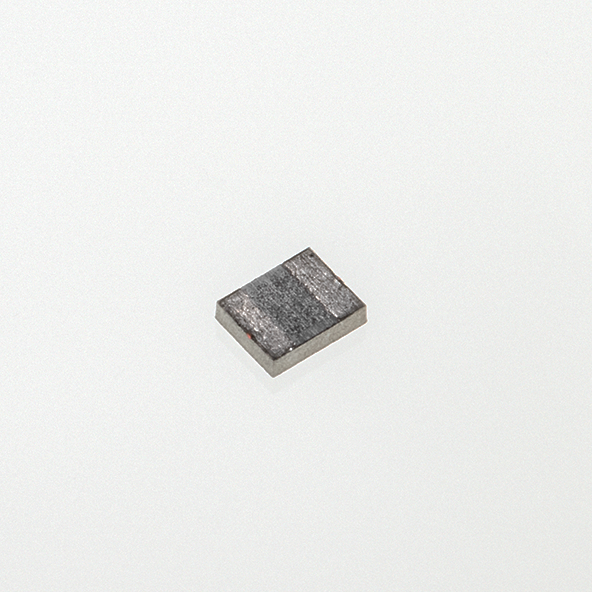

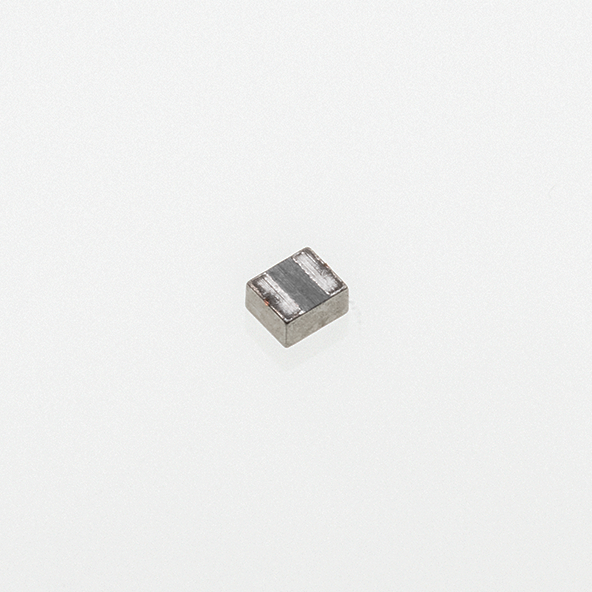

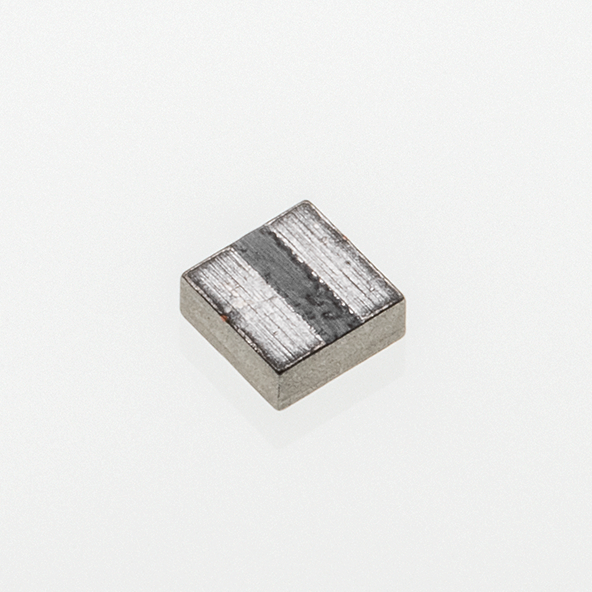

MCP1610
Feature Small size, Thin 1.6mm×1.6mm
Height 1.0mm MAX
Inductance／current 0.33μH   1.9A   ～   2.2μH   0.9A
Download the spec sheet

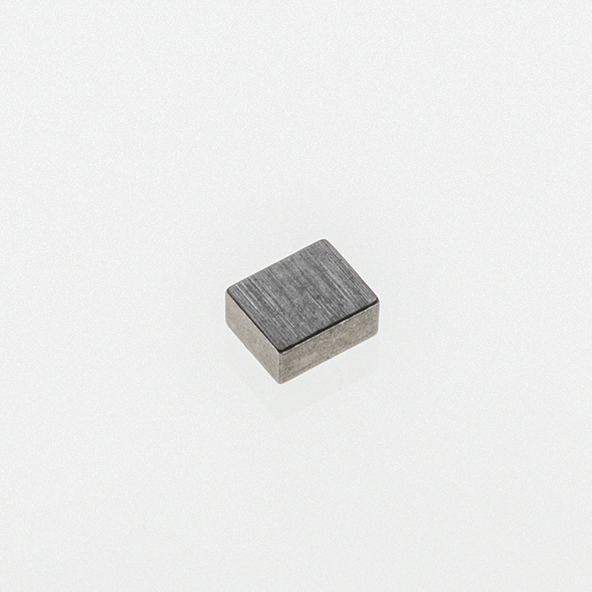

MCP201610
Feature Small size, Thin 2.0mm×1.6mm
Height 1.0mm MAX
Inductance／current 0.33μH   2.5A   ～   2.2μH   1.1A
Download the spec sheet

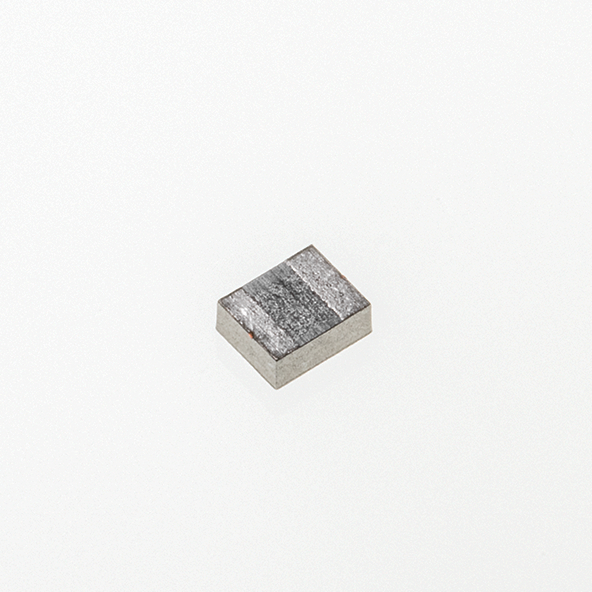

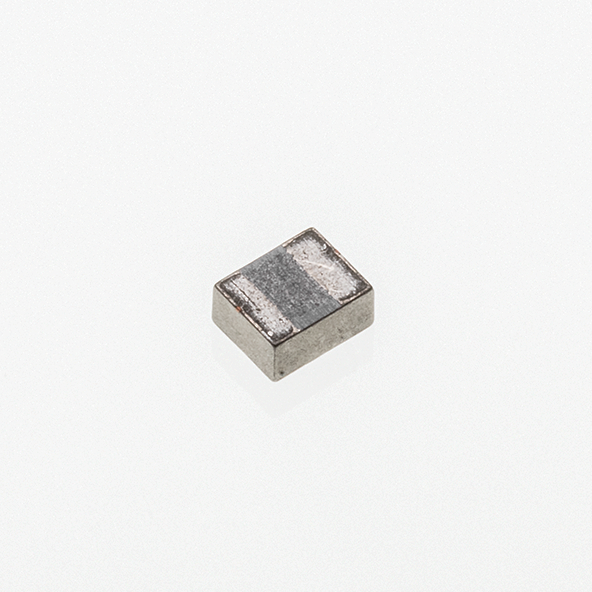

MCP252006
Feature Small size, Thin 2.5mm×2.0mm
Height 0.65mm MAX
Inductance／current 0.47μH   1.6A   ～   2.2μH   0.8A
Download the spec sheet
MCP252008
Feature Small size, Thin 2.5mm×2.0mm
Height 0.8mm MAX
Inductance／current 0.47μH   2.0A   ～   2.2μH   1.0A
Download the spec sheet
MCP252010
Feature Small size, Thin 2.5mm×2.0mm
Height 1.0mm MAX
Inductance／current 0.33μH   3.4A   ～   10.0μH   0.6A
Download the spec sheet
MCP252012
Feature Small size, Thin 2.5mm×2.0mm
Height 1.2mm MAX
Inductance／current 0.47μH   3.4A   ～   10.0μH   0.7A
Download the spec sheet

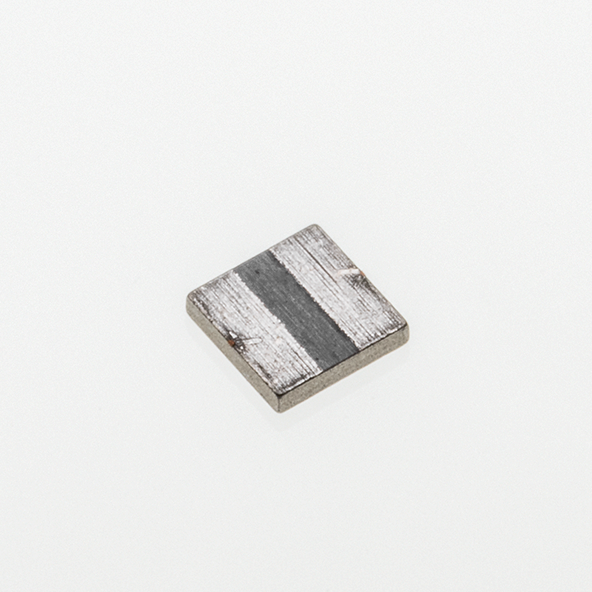

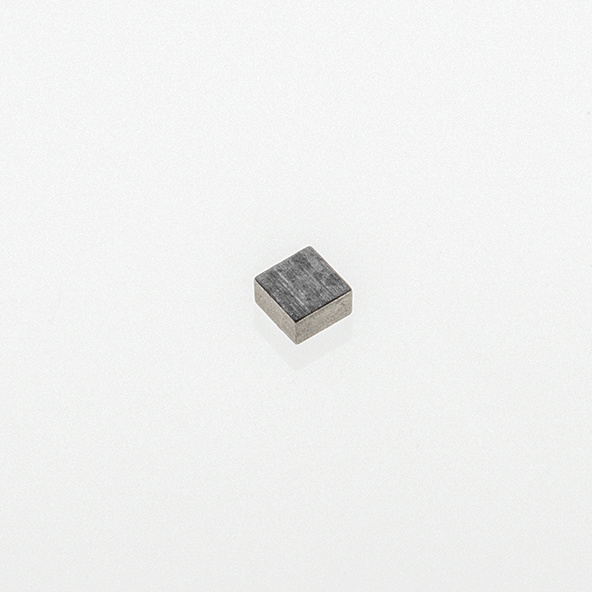

MCP0306
Feature Small size, Thin 3.0mm×3.0mm
Height 0.6mm MAX
Inductance／current 2.2μH   1.1A   ～   4.7μH   0.69A
Download the spec sheet
MCP0310
Feature Small size, Thin 3.0mm×3.0mm
Height 1.0mm MAX
Inductance／current 0.33μH   5.5A   ～   10.0μH   1.2A
Download the spec sheet
MCP0312
Feature Small size, Thin 3.0mm×3.0mm
Height 1.2mm MAX
Inductance／current 0.33μH   3.4A   ～   6.8μH   0.8A
Download the spec sheet
MCP0315
Feature Small size, Thin 3.0mm×3.0mm
Height 1.5mm MAX
Inductance／current 0.47μH   3.7A   ～   47μH   0.39A
Download the spec sheet
MCP0320
Feature Small size, Thin 3.0mm×3.0mm
Height 2.0mm MAX
Inductance／current 0.33μH   5.5A   ～   10.0μH   1.2A
Download the spec sheet

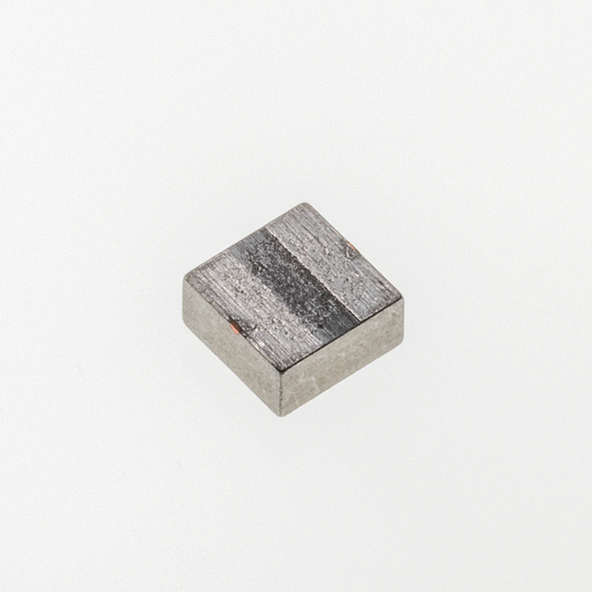

MCP0420
Feature Small size, Thin 4.1mm×4.1mm
Height 2.1mm MAX
Inductance／current 0.22μH   9.0A   ～   10.0μH   1.8A
Download the spec sheet
MCP0430
Feature Small size, Thin 4.1mm×4.1mm
Height 3.1mm MAX
Inductance／current 1.0μH   7.0A   ～   10.0μH   2.4A
Download the spec sheet
